Measure main pressure
Measure main pressure
The pressure test informs about malfunctions in the hydraulic control. It should only be undertaken if all the remaining tests do not show any cause of damage.
–  Before measuring the main pressure, interrogate the fault memory and rectify any possible electrical faults.
–  Interrogate the fault memory → Chapter.

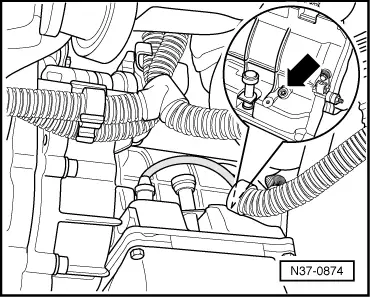

–  Screw out screw -arrow- for the main pressure hole, always replace screw, 15 Nm.
–  Connect the automatic gearbox testing device -V.A.G 1702- and tighten the knurled screw.
–  Start engine and run in idle.
–  Bleed the automatic gearbox testing device -V.A.G 1702-, to do so loosen the knurled screw and tighten it again after bleeding.
–  Set ATF temperature to 60 °C; to do so -V.A.G 1552 - connect and read measured value block → Chapter.
  N37-0874
