Octavia Mk1

Arrangement of the shift elements

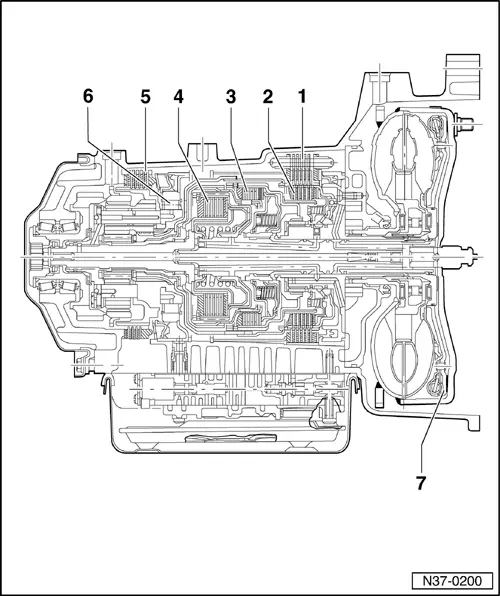

Arrangement of the shift elements
1 - 2nd and 4th gear - brake -B2-
2 - Reverse gear - clutch -K2-
3 - 1st up to 3rd gear - clutch -K1-
4 - 3rd up to 4th gear - clutch -K3-
5 - Reverse gear - brake -B1-
6 - Free wheel -F-
7 - Torque converter lockup clutch -Wk-

Position of the shift elements
In the event of complaints about unsatisfactory acceleration and speed values or more generally for drive faults, refer to the following table to determine which shift elements are activated in the individual gears. This will help determine which shift elements do not work correctly.
Before repairing the gearbox first perform self-diagnosis → Chapter.

GearB1B2K1K2K3FWk
Rx  x
1H  x  x  X = closed clutches, brakes
1M  x  xx  or free wheel
2H xx     H = hydraulic
2M xx   x M = mechanical
3H  x x
3M  x x x
4H x  x
4M x  x x
