Check the gear oil in the rear final drive
Check the gear oil in the rear final drive
Check the gear oil in the rear final drive
Gearbox oil specification
→ Electronic Catalogue of Original Parts
.
–

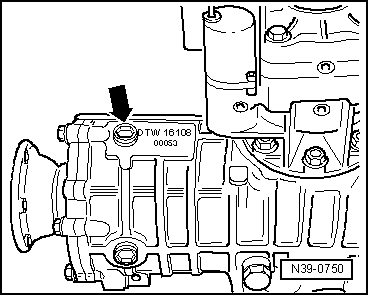

Unscrew screw
-arrow-
for inspecting gear oil.
Oil is at the correct level if the rear final drive is filled up to the lower edge of the oil filler hole.
–
Screw in plug
-arrow-
.
If re-filling, do the following
–
Release screw
-arrow-
.
–
Pour in gear oil up to lower edge of filler hole.
–
Screw in plug
-arrow-
.
Tightening torque
Component
Nm
Oil filler plug at rear final drive
25
