Replacing gasket ring for flange/propshaft on the Haldex coupling (final drive removed)
Replacing gasket ring for flange/propshaft on the Haldex coupling (final drive removed)
Special tools and workshop equipment required
t  Ejection lever -MP3-418 (VW 681)-
t  Gearbox mount -MP3-501- or gearbox mount -T30109 (VW 353)- with retaining plate -T30108-
t  Assembly stand -MP9-101-
t  Stop plate -T30012/1A (3221/1A)-
t  Thrust piece -T10019-
t  Counterholder -T30004 (3415)-
t  Three armed extractor e.g. -Kukko 45-2-
t  Locking agent -D 000 600-
t  2 screws M10 x 20

Change gearbox holder -MP3-501-
  Note

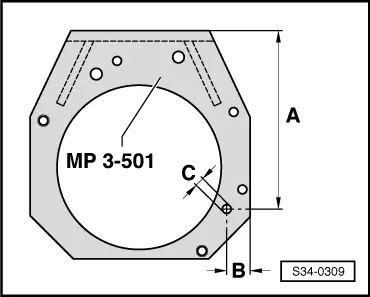

Before fastening the rear final drive, the gearbox holder -MP3-501- must be reworked in accordance with the dimensions stated below.
  S34-0309
A =
B =
Ø C =
259.0 mm
36.0 mm
13.0 mm

Removing

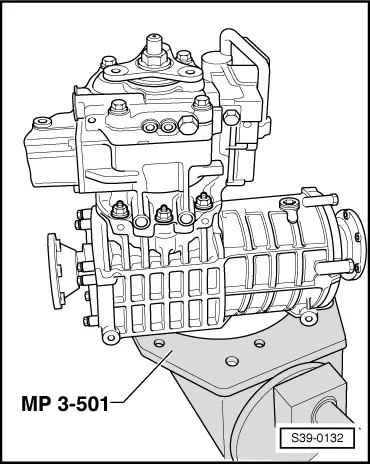

–  Clamp the rear final drive into the assembly stand.
  S39-0132
–  Unscrew the nut from the flange/propshaft -arrow-.
A - Screws M 10 x 20
  Note

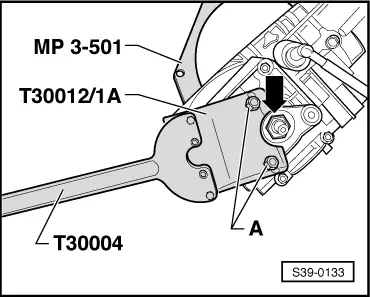

When loosening the nut of the flange/propshaft, counterhold via the stop plate -T30012/1A (3221/1A)- with the bolted counterholder -T30004 (3415)-.
  S39-0133

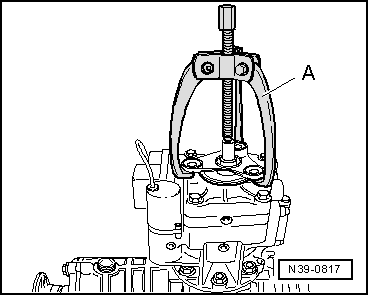

–  Pull off flange for propshaft. Use three armed extractor-A-, if necessary.
-A-three armed extractor e.g. -Kukko 45-2-
–  Pull out gasket ring with ejection lever -MP3-418 (VW 681)-.
Install
–  Lightly oil new gasket ring before installing on the outside diameter and the space between the sealing lips with high efficiency oil -G 052 175 A1- for Haldex coupling.
  N39-0817
–  Drive in new gasket ring until flush.
–  Install flange/propshaft.
  N39-0753

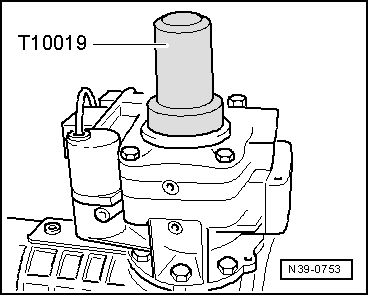

–  Insert new nut -arrow- with locking agent -D 000 600- and tighten to 220 Nm.
A - Screws M 10 x 20
  Note
When tightening the nut, counterhold the flange/propshaft via the stop plate -T30012/1A (3221/1A)- with the bolted counterholder -T30004 (3415)-.
–  Install rear final drive → Chapter.
–  Check oil level in Haldex coupling → Chapter, if necessary change oil in Haldex coupling → Chapter.
–  Specification → electronic catalogue of original parts.
