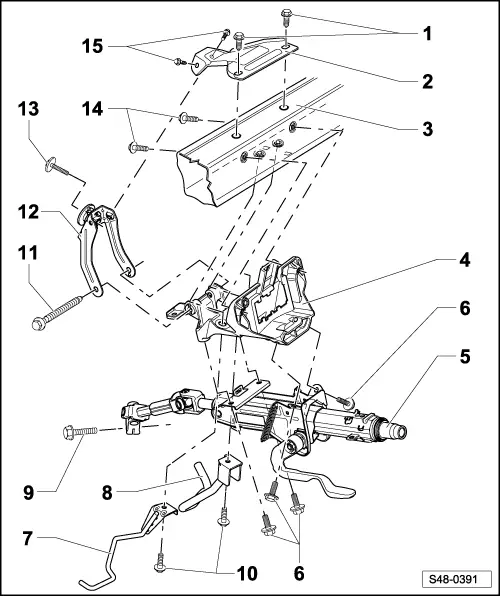

Summary of components of steering column RHD - for vehicles as of CW 45/08 |
Note
t | Observe handling and transportation of the steering column → Chapter. |
t | Self-locking nuts must always be replaced. |
t | Always replace corroded self-locking nuts and screws. |
1 - | Screw, 20 Nm |
2 - | Frequency link |
q | removing and installing → Chapter |
3 - | Central pipe |
4 - | Support |
q | removing and installing → Chapter |
5 - | Steering column |
q | Observe handling and transportation → Chapter |
6 - | Screw, 20 Nm |
q | M8 x 30 |
7 - | Crash strut |
q | for the clutch pedal |
q | Assignment → Electronic Catalogue of Original Parts |
8 - | Crash strut |
q | for brake pedal |
q | Assignment → Electronic Catalogue of Original Parts |
9 - | Screw, 30 Nm |
q | replace after each removal |
q | → Electronic Catalogue of Original Parts |
10 - | Screw, 20 Nm |
q | M8 x 30 |
11 - | Screw, 20 Nm |
q | M8 x 94 |
12 - | Frequency link |
q | removing and installing → Chapter |
13 - | Screw, 25 Nm |
q | M8 x 48 |
14 - | Screw, 20 Nm |
q | M8 x 85 |
15 - | Screw, 8 Nm |
