Removing and installing the rear door

Removing:

–	Switch off the ignition and all electrical components.

–	Pull off the bellows -6- from pillar B.

–	Separate plug connections -4-.

–	Remove the nuts -2- from the hinges -1-.

–	Remove screw -5- from the door arrester -3-.

–	Hook out the door upwards.

Installing:

–	Installation is carried out in the reverse order; pay attention to the following points:

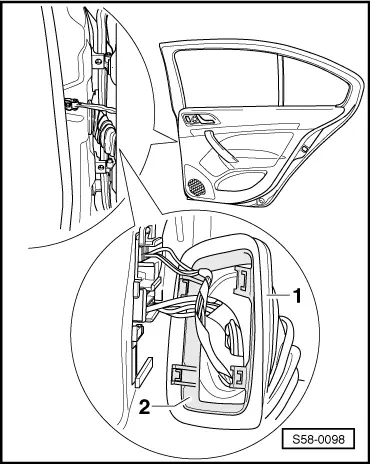

–	Remove bellow bracket -2- from pillar B.

–	Insert bellow bracket -2- in the bellows -1- and install bracket with bellows in the pillar B.

Note

In the event of damage replace bellow bracket -2- with a new original part.
