Octavia Mk2
| Fuel tank with attached parts |
| 1 - | Mounting part |
| 2 - | Screw cap |
| q | replace the O-ring if it is damaged |
| 3 - | Earth connection |
| 4 - | 11 Nm |
| 5 - | Support |
| 6 - | 25 Nm |
| q | replace |
| 7 - | Fuel tank |
| q | when removing, support using the engine and gearbox jack, e.g. -V.A.G 1383 A- |
| q | removing and installing → Chapter |
| 8 - | Circlip |
| 9 - | Bracket for the exhaust system |
| 10 - | Tensioning strap |
| q | Check fitting position |
| 11 - | Heat shield |
| 12 - | Fuel cooler |
| q | removing and installing → Chapter |
| 13 - | to fuel filter |
| 14 - | 20 Nm |
| 15 - | Gasket ring |
| q | replace |
| q | to be inserted dry into the opening of the fuel tank |
| q | must be moistened on the inside with fuel before assembly of the fuel delivery unit |
| 16 - | Fuel delivery unit |
| q | with sender for fuel gauge display |
| q | removing and installing → Chapter |

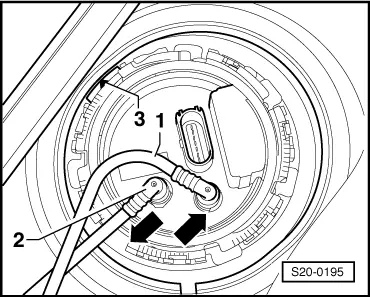

| q | note the installed position of the fuel tank → Fig. |
| q | Check fuel delivery unit → Chapter |
| q | Clean strainer if dirty |
| q | removing and installing the sender for fuel gauge display → Chapter |
| 17 - | Lock ring - 110 Nm |
| q | use wrench -T30101 (3087)- for removing and installing |
| q | check for firm seating |
| 18 - | Fuel return-flow line |
| q | from fuel cooler |
| q | clipped in place on fuel tank |
| q | check for firm seating |
| q | blue |
| 19 - | Fuel feed line |
| q | to fuel filter |
| q | clipped in place on fuel tank |
| q | check for firm seating |
| q | black |
| 20 - | Fuel tank lid unit |
| q | with rubber bowl |
| q | removing and installing → Body Work → Rep. Gr.55 |
