Octavia Mk2

Removing and installing tandem pump, vehicles with engine identification characters BMM
Removing and installing tandem pump, vehicles with engine identification characters BMM
Special tools and workshop equipment required
t  Diesel extractor, e.g. -VAS 5226-
t  Pliers for spring strap clamps
Removing
  WARNING
Under no circumstances must the tandem pump be disassembled, otherwise it can lead to malfunction of the vacuum part. This will result in a failure of the brake booster.
  Caution
Observe instructions for installing again a used tandem pump → Chapter.
  Note
t  Safety precautions when working on the fuel supply system → Chapter.
t  Observe the regulations concerning cleanliness when working on the fuel supply/injection system → Chapter.
–  Remove engine cover → Chapter.
–  Remove air filter → Chapter.

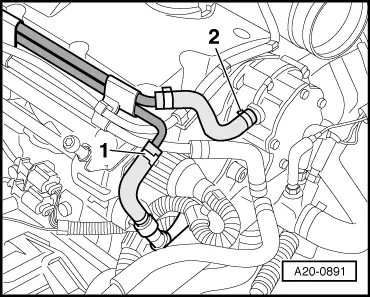

–  Remove fuel intake hose -2- (marked in white) from the tandem pump.
–  Remove fuel return-flow hose -1- (marked in blue) from the fuel line.
  A20-0891

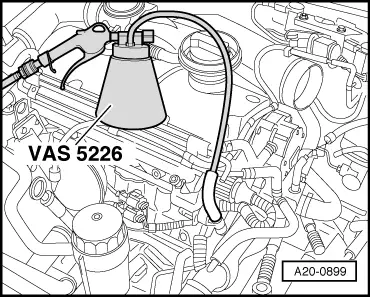

–  Connect diesel extractor -VAS 5226- to fuel return-flow hose.
–  Apply compressed air to diesel extractor -VAS 5226-.
–  Operate diesel extractor -VAS 5226- until no more fuel comes out of the fuel return-flow hose.
  A20-0899
–  Disconnect the vacuum hose to the brake servo unit at the tandem pump -arrow-.
–  Pull out the central plug for the unit injectors.
  A10-1851

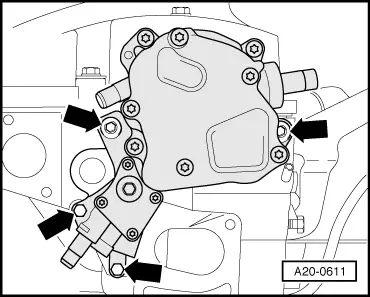

–  Release screws -arrows-.
–  Remove tandem pump -4- from cylinder head.
Install
Installation occurs in reverse order to removal. Pay attention to the following:
  Note
t  Ensure that the driver of the tandem pump is correctly seated in the camshaft.
t  Always replace the tandem pump seals.
–  Install tandem pump and tighten the top fixing screws (M8) to 20 Nm.
–  Tighten bottom fixing screws (M6) to 8 Nm.
–  Connect the fuel intake hose and the vacuum hose at the tandem pump.
  A20-0611
–  Connect diesel extractor -VAS 5226- to fuel return-flow hose.
–  Operate diesel extractor -VAS 5226- until fuel flows out of the fuel return-flow hose.
–  Connect the fuel return flow hose (marked in blue) to the fuel line.
–  Connect central plug for unit injectors.
  A20-0899
