Removing and installing thecontrol motor of the re-circulating air flapV113

Removing and installing thecontrol motor of the re-circulating air flap -V113-

Removing

–	Remove the storage compartment in the dash panel on the front passenger side → Body Work; Rep. gr.70.

Note

The position of the re-circulating air flap must not be changed.

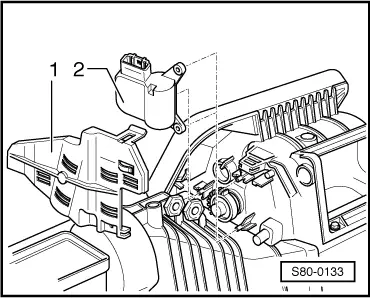

–	Remove cover -1-.

–	Disconnect the plug connection from the control motor of the re-circulating air flap -V113--2-.

–	Remove the control motor of the re-circulating air flap - V113--2- from the mounts.

Install

Installation is carried out in the reverse order.

Note

After installing the control motor, it is necessary to test the operation of the re-circulating air flap.
