Check oil level in Haldex coupling - Octavia Mk2 gearbox

Check oil level in the Haldex coupling
Check oil level in the Haldex coupling
Special tools and workshop equipment required
t  Catch pan
Oil specification → Electronic Catalogue of Original Parts.
–  Measure oil temperature → Vehicle diagnostic tester.
The oil temperature must be between 20 and 40 °C.
The oil temperature can be increased by warming up the engine.
–  Place a catch pan under the rear final drive.

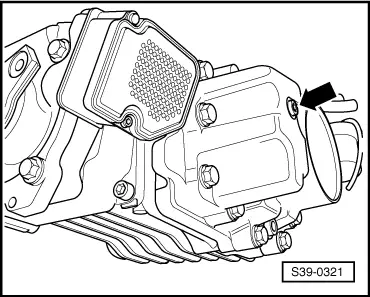

–  Release screw for oil inspection -arrow-. (Shown on a removed final drive for purposes of clear presentation).
Oil is at the correct level if the Haldex coupling is filled up to the lower edge of the oil filler hole or max. 3 mm below the lower edge of the oil filler hole.
–  Screw in new screw -arrow- using a new sealing ring and tighten to 15 Nm.
  S39-0321
