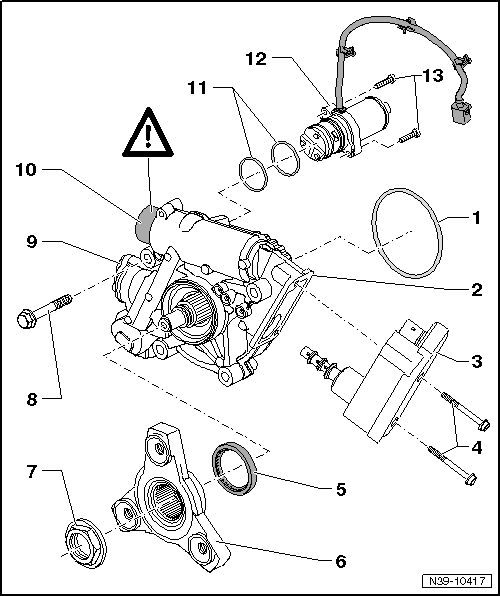

Summary of components - Disassembling and assembling „Haldex coupling of the 4th generation“ (final drive „OBR“)

Summary of components - Disassembling and assembling „Haldex coupling of the 4th generation“ (final drive „OBR“)
1 - O-ring
q   moisten with high efficiency oil for Haldex coupling and insert
q   always replace → Electronic Catalogue of Original Parts
2 - housing for Haldex coupling
q   removing and installing complete Haldex coupling → Chapter
3 - Four-wheel drive control unit -J492 -
q   with control valve of opening degree of coupling -N373-
q   removing and installing → Chapter
4 - 6 Nm
5 - Gasket ring for flange of propshaft
q   removing and installing → Chapter
6 - Flange for propshaft
q   removing and installing → Chapter
7 - Snap nut, 210 Nm
q   secure with locking agent -D 000 600-
8 - 50 Nm
q   4 pieces
q   for housing of Haldex coupling Pos. 2 to rear final drive
9 - Cover
q   for oil filter housing
q   Oil filter change is not necessary
10 - Cover
q   for pressure reservoir
  WARNING
The screw cap must never be opened, risk of injuries!
11 - O-ring
q   2 pieces
q   Diameter 34 mm
q   for pump for Haldex coupling -V181-
q   moisten with high efficiency oil for Haldex coupling and insert
q   always replace → Electronic Catalogue of Original Parts
12 - Pump for Haldex coupling -V181-
q   removing and installing → Chapter
13 - 6 Nm



Power transmission > Gearbox 02S > Final drive, differential, differential lock > Disassembling and assembling Haldex coupling > Summary of components - Disassembling and assembling "Haldex coupling of the 4th generation" (final drive "OBR&qu
