Setting output shaft

Make

Skoda

Model

Octavia Mk2

Section

Gearbox,mechanics,gears,shafts,internal operation › Output shaft › Setting output shaft

Power transmissionSetting output shaft

Setting output shaft (Determine adjusting washer for output shaft) Special tools and workshop equipment required t  Gauge block plate -MP3-405/17- t  Multi-purpose tool -MP3-419 (VW 771)- t  Pressure spindle -MP3-423 (VW 407)- t  Universal dial gauge holder -MP3-447 (VW 387)- t  Pressure washer -MP3-460 (VW 512)- t  Bolts M8 and M10 -3114/2- t  Interior extractor 37 up to 46 mm, e.g. - Kukko 21/6- t  Extractor, e.g. -Kukko 18/0- t  Countersupport e.g. -Kukko 22/2- t  Dial gauge The output shaft must be re-set when the following components are replaced: t  Output shaft t  Clutch housing or t  Tapered-roller bearing Setting overview → Chapter   Note Sealing surfaces of clutch and gearbox housing must be removed of sealant residues.

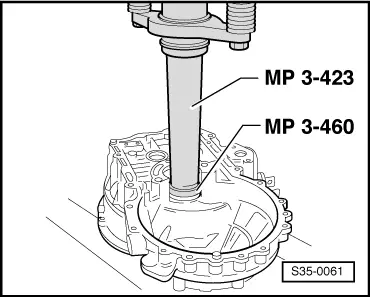

–  Press in outer ring/tapered-roller bearing small in the clutch housing with a 0.65 mm thick adjsuting washer up to the stop –  Insert output shaft and tighten nuts for the bearing support to tightening torque → Chapter. –  Turn output shaft 20 to 30 times in one direction.   Note t  Therefore, it must be turned in one direction so that the rolling elements/tapered-roller bearings settle in one direction. t  This requires 20 to 30 turns. t  Otherwise the alignment result will be distorted.

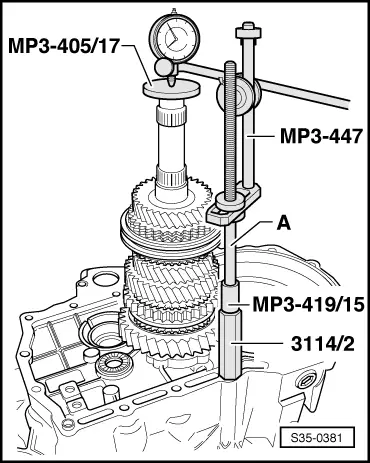

–  Insert dial gauge (3 mm measuring range) and set to „0“ with a 1 mm bias. -A- Threaded spindle for extractor -Kukko 18/0-. –  Move the output shaft up and down, read off and write down the clearance on the dial gauge. (Example: 0.20 mm).

04 Transmission
