Gearbox 02S (Four-wheel drive): Technical Data

Make

Skoda

Model

Octavia Mk2

Section

Technical Data › Overview of Transmission System › Four-wheel drive

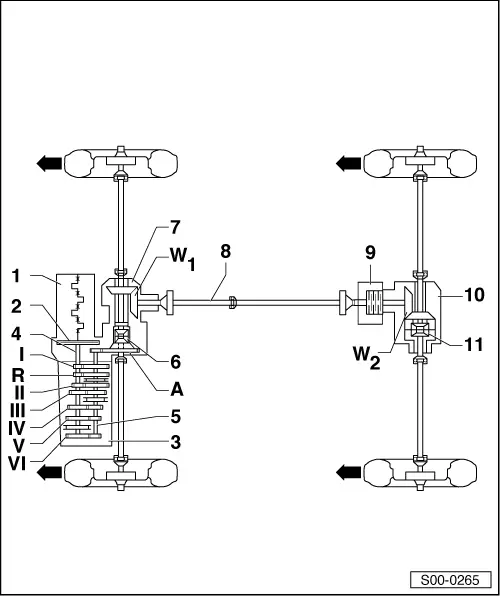

Power transmissionFour-wheel drive

Four-wheel drive   Note The arrow shows the direction of travel.

1 -

Engine

2 -

Clutch

3 -	Manual gearbox

4 -	Drive shaft (main shaft)

5 -	Output shaft

6 -	Differential gear

7 -	Angle gearbox

8 -

Propshaft

9 -	Haldex coupling

10 -	Rear final drive

11 -	Differential gear

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

VI -

6th gear

R -	Reverse gear

A -	Final drive

W1 -	Drive chain of the angle gearbox, front

W2 -	Drive chain of the rear final drive
