Skoda Workshop Service and Repair Manuals > Octavia Mk2 > Power transmission | Gearbox 0A4 | Clutch, control | Clutch control | Removing and installing slave cylinder (Octavia II)

Install

Installation is performed in the reverse order, pay attention to the following points:

–	Grease tappet head with grease -G 000 100-.

–	Install slave cylinder and tighten screws -arrows B- to the given tightening torque.

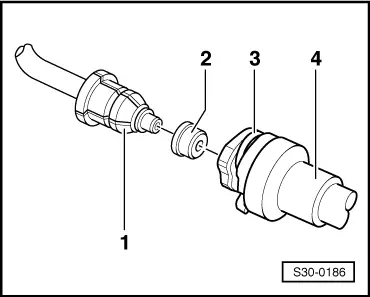

–	Push the tube-hose line -1- with new gasket ring -2- into the slave cylinder -4- up to the stop.

–	Press in the retaining clip of the tube-hose line up to the stop.

–	For testing pull on the tube-hose line.

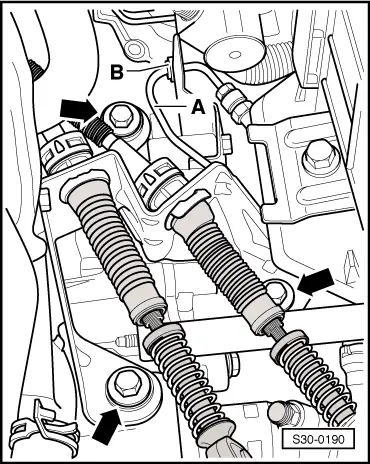

–	Install bracket -B- at the gearbox and insert the tube-hose line -A-.

–	Remove hose clamp -MP7-602 (3094)-.

–	Attach gearbox support to gearbox -arrows A- and tighten.

–	After installing the slave cylinder bleed the clutch control → Chapter.

Assemble gearshift mechanism up to 10.06 → Chapter.

Assemble gearshift mechanism as of 11.06 → Chapter.

Setting the shift mechanism → Chapter.

–	Install the battery tray and battery → Electrical System; Rep. gr.27.

–	Install air filter → Engine; Rep. gr.23.

Note

After the battery earth strap is disconnected and re-connected, carry out additional operations → Electrical System; Rep. gr.27.

–	Connect earth strap of battery → Electrical System; Rep. gr.27.

Tightening torque

Component		Nm
Slave cylinder to gearbox		→ Chapter
bracket for tube-hose line		→ Chapter
Support to gearbox mounting bracket and gearbox		→ Chapter
Gearbox shift lever to gearshift shaft		→ Chapter
Cable support to gearbox		→ Chapter
