Octavia Mk2
|
| (Gearbox removed) |
Note| t | Before replacing the clutch disc and pressure plate fault finding power transmission - observe complaints of the clutch and clutch control → Chapter. |
| t | Replace the clutch discs and pressure plates if the riveting is damaged or loose. |
| t | Assign the clutch disc and pressure plate in accordance with engine identification characters → Electronic Catalogue of Original Parts. |

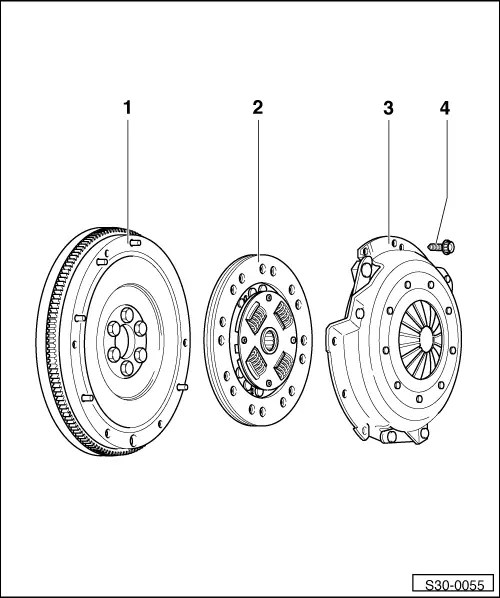

| 1 - | Flywheel |
| q | make sure the centering pins are correctly fitted |
| q | The locating face for the clutch lining must be free from grooves, oil and grease |
| q | Removing and Installing → Engine; Rep. gr.13 |
| 2 - | Clutch disc |
| q | Assignment → Electronic Catalogue of Original Parts |
| q | Fitting position: the spring cage points towards the pressure plate. |

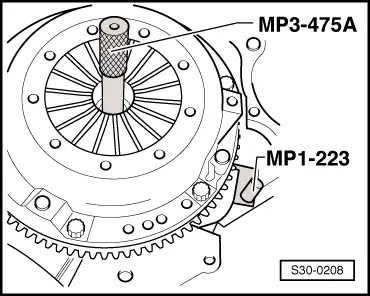

| q | centering, vehicles with 1.4 ltr. engine → Fig. |

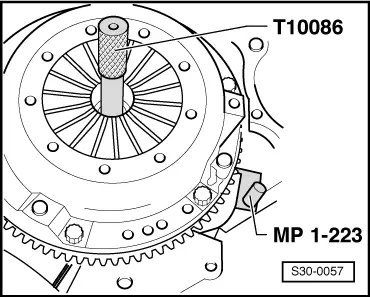

| q | centering, vehicles with 1.6 ltr. engine → Fig. |
| q | slightly grease the serration |
Note| Clean the drive shaft serration and hub serration on used clutch discs, remove corrosion. Apply a very thin layer of grease -G 000 100- onto the serration. Subsequently move the clutch disc up and down on the drive shaft until the hub fits smoothly on the shaft. Remove all excess grease. |
| 3 - | Pressure plate |
| q | removing and installing, vehicles with 1.4 ltr. engine → Fig. |
| q | removing and installing, vehicles with 1.6 ltr. engine → Fig. |
| q | Check the extremities of the membrane springs → Fig. |
Note| The pressure plates are protected against corrosion and are greased. Only clean the thrust surface as otherwise the life of the clutch may be considerably reduced. |
| 4 - | Screw M6 - 13 Nm; screw M7 - 20 Nm |
| q | Release or tighten gradually and crosswise |
| q | assign according to the → Electronic catalogue of original parts. |
