Octavia Mk2

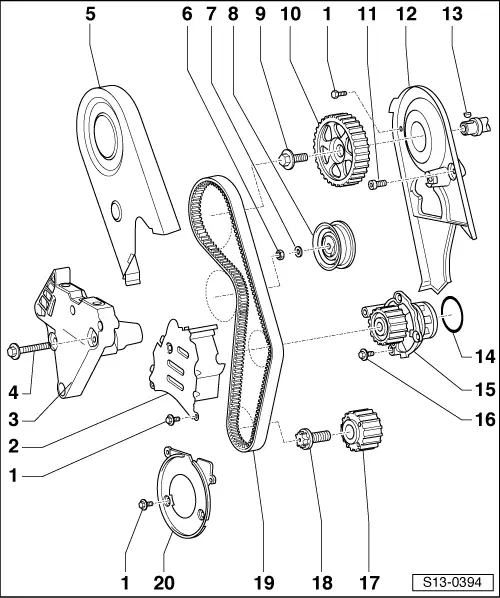

| Timing belt - Summary of components |
| 1 - | 10 Nm |
| q | insert using locking agent -D 000 600 A2- |
| 2 - | Middle toothed belt guard |
| 3 - | Engine support bracket |
| q | removing and installing → Chapter |
| 4 - | 45 Nm |
| 5 - | Top toothed belt guard |
| q | removing and installing → Chapter |
| 6 - | 23 Nm |
| 7 - | Washer |
| 8 - | Semi-automatic tensioning pulley |
| q | check → Chapter |
| q | Fitting position → Chapter |
| 9 - | 100 Nm |
| q | to release and tighten use the counterholder -T30004 (3415)- |
| 10 - | Camshaft sprocket |
| q | for removal and installation, remove toothed belt → Chapter |
| q | Installation position fixed by woodruff key → Item |
| 11 - | 23 Nm |
| q | insert using locking agent -D 000 600 A2- |
| 12 - | Rear toothed belt guard |
| 13 - | Woodruff key |
| q | check tightness |
| 14 - | O-ring |
| q | replace |
| 15 - | Coolant pump |
| q | removing and installing → Chapter |
| 16 - | 15 Nm |
| 17 - | Crankshaft - toothed belt sprocket |
| q | there must not be any oil present on the contact surface between the toothed belt sprocket and the crankshaft |
| q | can be installed only in one position |
| 18 - | 90 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | do not oil |
| q | to release and tighten use the counterholder -T30004 (3415)- |
| 19 - | Toothed belt |
| q | mark the direction of rotation with chalk or a felt-tip pen before removing |
| q | check for wear |
| q | removing → Chapter |
| q | install (set the timing) → Chapter |
Note| If the toothed belt is replaced when carrying out engine repair (apart from regular change interval), it should be entered in the Service Schedule! |
| 20 - | Bottom toothed belt guard |
| q | unscrew the crankshaft-belt pulley for the removal |
