Octavia Mk2
| V-ribbed belt - Summary of components |
| 1 - | Belt pulley |
| q | for the V-ribbed belt |
| 2 - | 10 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| 3 - | 23 Nm |
| 4 - | Tensioning device for V-ribbed belt |
| q | swivel tensioning device for V-ribbed belt with open-end wrench to slacken the V-ribbed belt |
| q | Secure tensioning device with a hexagon wrench |
| 5 - | Bracket for auxiliary units |
| 6 - | Support |
| 7 - | AC generator |
| q | removing and installing → Electrical System; Rep. gr.27 |
| q | to facilitate the positioning of the generator, drive the threaded bushings for fixing screws at the generator slightly backwards |
| 8 - | 45 Nm |
| q | replace |

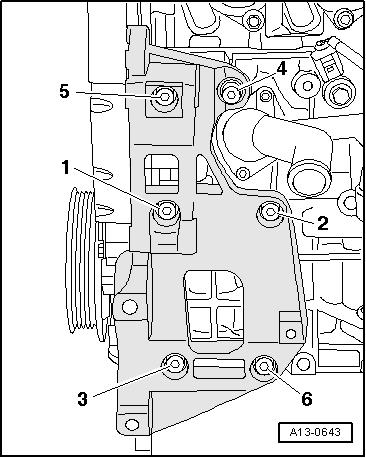

| q | observe the order of tightening up → Fig. |
| 9 - | Bush |
| q | 2 pieces |
| 10 - | 25 Nm |
| 11 - | AC compressor |
| q | removing and installing → Heating, Air Conditioning; Rep. gr.87 |
| 12 - | V-ribbed belt |
| q | mark the direction of rotation with chalk or a felt-tip pen before removing |
| q | check for wear |
| q | do not kink |
| q | removing and installing → Chapter |

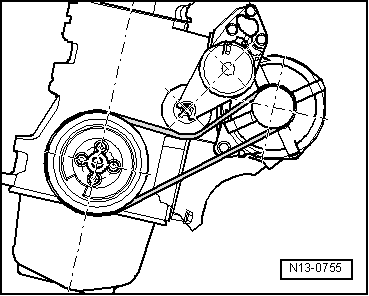

| q | Routing of the V-ribbed belt without AC compressor → Fig. |
| q | Routing of the V-ribbed belt with AC compressor → Fig. |
|
|
|
|
|
|
