Octavia Mk2

Removing and installing engine speed senderG28
Removing and installing engine speed sender -G28-
Special tools and workshop equipment required
t  Hose clamps up to Ø 25 mm -MP7-602 (3094)-
t  Assembly device -T10118-
t  Socket insert -T10370-
Removing
–  Remove the sound dampening system → Body Work; Rep. gr.50.
–  Unclip the coolant hoses at the engine oil cooler with hose clamps and remove the coolant hoses.
–  Remove oil filter holder → Chapter.

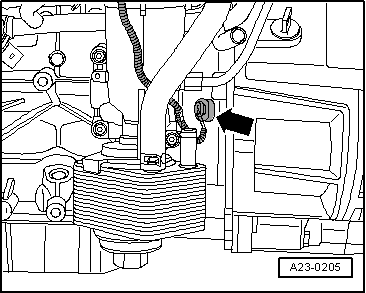

–  Remove the plug -arrow- on the engine speed sender -G28- with the assembly device -T10118- and lay the electrical cable to the side.
  Note
To unlock the plug without using the assembly device -T10118-, the unlock button must be pressed at the plug using a screwdriver and at the same time unlock the unlock button with a thin wire hook.
  A23-0205

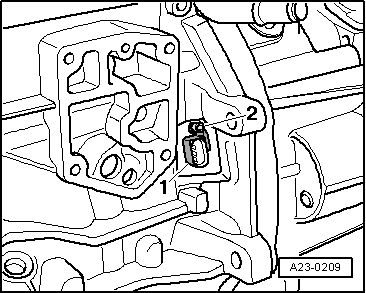

–  Unscrew the fixing screw -2- of the engine speed sender -G28--1- and pull out the sender.
Install
Installation is performed in the reverse order, pay attention to the following points:
–  Install oil filter holder → Chapter.
Tightening torque
  A23-0209
ComponentNm
Engine speed sender -G28- on the flange5
