Roof aerial for radio

Make

Skoda

Model

Octavia Mk2

Section

Infotainment › Aerial systems › Roof aerial for radio

Vehicle electricsRoof aerial for radio

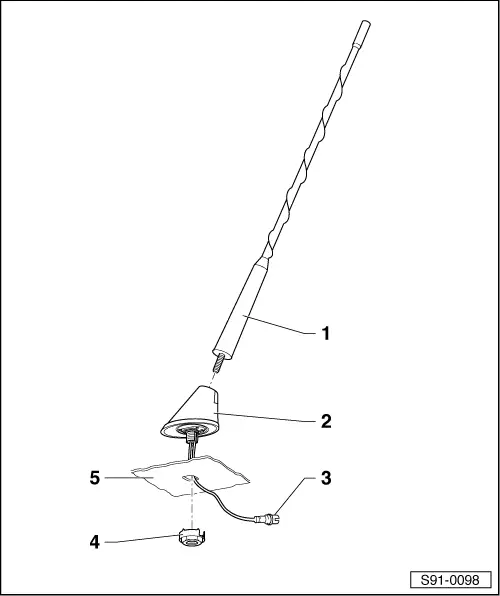

Roof aerial for radio

1 -	Aerial rod

q	the aerial rod can be removed or folded depending on the type of aerial - combined with the aerial base

2 -	Aerial base

q	to remove and install: lower moulded headliner at rear

3 -	Connection for the antenna cable going to the radio

4 -	Hexagon nut with serrated washer

q	up to MY 08 - 3 Nm

q	as of MY 09 - 6 Nm

q	hexagonal nut is connected to serrated washer by plastic ring

q	apply contact grease on the inside of roof in the area of the serrated washer

5 -

Roof
