Removing and installing - vehicles "RS" and "Scout" - as of CW 22.09
Removing and installing - vehicles „RS“ and „Scout“ - as of CW 22.09
Removing and installing - vehicles „RS“ and „Scout“ - as of CW 22.09
Removing
–
Switch off the ignition and all electrical components.
–
Vehicles „RS“ - insert a finger in the opening of the cover for fog light and unclip from the bumper.
–
Vehicles „Scout“ - insert a wire hook from the repair kit in the opening above the fog light and remove the cover.
–

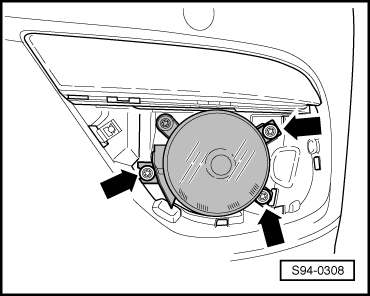

Unscrew screws
-arrows-
and remove fog light or lamp for daylight driving light (Scout).
–
Disconnect the plug connection.
Install
Installation is performed in the reverse order, pay attention to the following points:
–
Perform a functional check or adjust
→ Booklet Octavia II
.
