Replacing the lamp for the fog light and for the fog light with the "Corner" function
Replacing the lamp for the fog light and for the fog light with the „Corner“ function
Replacing the lamp for the fog light and for the fog light with the „Corner“ function
WARNING
H1 and H8 bulbs are pressurized and can burst when changing the bulb. It is recommended to wear gloves and safety spectacles when changing the lamps.
Removing
All vehicles except „RS“ and „Scout“
–
Remove headlight (depending on the model year and the type)
→ Chapter
.
–
Turn bulb socket
-2-
45° in the
-direction of the arrow-
.
–
Replace bulb „H8“ 12 V, 35 W.
Vehicles „RS“ and „Scout“ - up to CW 21.09
–
Switch off the ignition and all electrical components.
–
Remove the front part of the front wheelhouse liner on the side of the bulb to be removed
→ Body Work; Rep. gr.66
.
–
Disconnect the plug connection, release the cover
-1-
by turning to the left and swivel out.
–
Disconnect plug connection
-3-
and release the wire spring clamp
-2-
.
–
Replace bulb
-4-
„H1“ 12 V, 55 W.
Vehicles „RS“ and „Scout“ as of CW 22.09
–

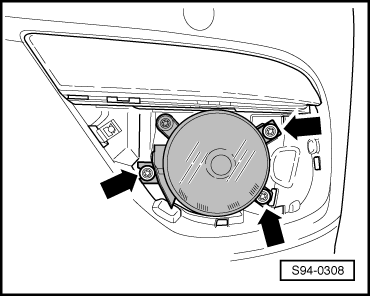

Unclip cover for fog light from bumper.
–
Release screws
-arrows-
and remove fog light.
–
Disconnect plug connection, turn bulb socket
-arrow-
and take out light bulb
-1-
.
–
Replace bulb „HB4“ 12 V, 35 W.
Install
Installation is performed in the reverse order, pay attention to the following points:
–
Perform a functional check or adjust
→ Booklet Octavia II
.
