Octavia Mk2

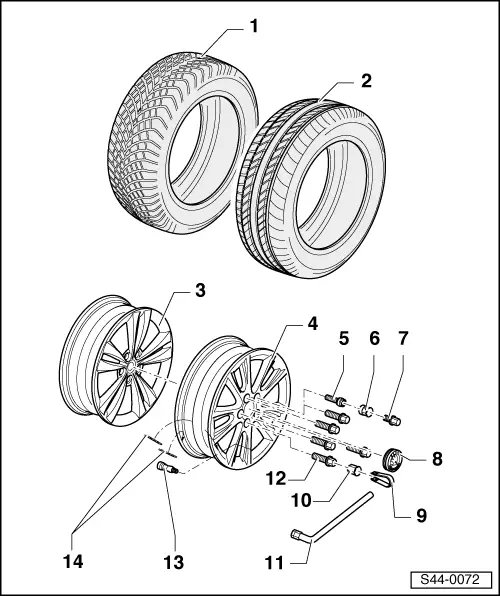

| Wheel with a light alloy rim 7,5J x 18 |
Note| t | The light-alloy rim and the wheel trim cap may differ from the figure. |
| t | The contact surface tread may differ from the shown contact surface tread. |
| 1 - | Tyres |
| q | tread bound by the direction of rotation |
| 2 - | Tyres |
| 3 - | Light-alloy rim |
| q | 7,5J x 18, ET 51 |
| 4 - | Light-alloy rim |
| q | 7,5J x 18, ET 51 |
| 5 - | Wheel bolt, anti-theft 120 Nm |
| q | M14 x 1.5 x 27.5 |
| 6 - | Cap |
| q | for anti-theft wheel bolt - Pos. 5 |
| q | pull off with pull-off shackle - Pos. 9 |
| 7 - | Adapter for anti-theft wheel bolt |
| q | included in tool kit |
| q | Master set for wheel bolts -T40004- or -T10101- |
| 8 - | Wheel trim cap |
| q | can only be removed once the wheel has been removed |
| q | removing and installing |
Note| Do not use a pull-off hook or other tools, e.g. screwdriver as this could damage the wheel trim cap. |
| Removing: |
| Push the wheel trim cap towards the outside from the inside of the rim. |
| Installing: |
| Push-in the wheel trim cap from the outside of the rim, audible click. |
| 9 - | Pull-off shackle |
| q | included in tool kit |
| 10 - | Cap |
| q | for wheel bolt - Pos. 12 |
| q | pull off with pull-off shackle - Pos. 9 |
| 11 - | Wheel bolt key |
| q | included in tool kit |
| 12 - | Wheel screw, 120 Nm |
| q | M14 x 1.5 x 27 |
| 13 - | Valve |
| q | Assignment → Electronic Catalogue of Original Parts |
| 14 - | Adhesive wheel weights |
| q | max. 60 g allowed per rim flange |
| q | Fitting position and glueing procedure of the self-adhesive balancing weights → Anchor |
