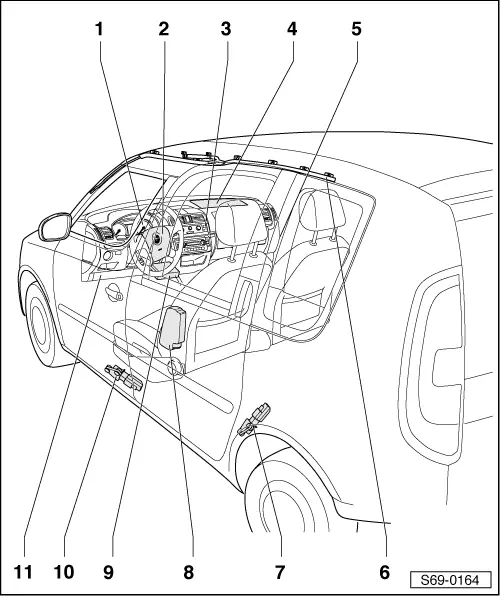

| Airbag system - Overview |
| 1 - | Warning light for the airbag system |
| 2 - | Driver airbag unit |
| q | Removing and installing → Chapter. |
| 3 - | Warning light when front passenger airbag is deactivated |
| 4 - | Passenger-side airbag unit |
| q | Removing and installing → Chapter. |
| q | The switching off and on (activation) is undertaken by means of the key switch for the front passenger airbag or → Vehicle diagnostic tester |
| 5 - | Key switch for front passenger airbag |
| 6 - | The head airbag unit |
| q | Removing and installing → Chapter. |
| 7 - | Sensor for side airbag |
| q | Only for vehicles with head airbag. |
| q | Removing and installing → Chapter. |
| 8 - | Side airbag unit |
| q | The side airbag unit is fitted in the driver's seat backrest. |
| q | Removing and installing → Chapter. |
| 9 - | Control unit for the airbag system |
| q | Removing and installing → Chapter. |
| 10 - | Sensor for side airbag |
| q | Removing and installing → Chapter. |
| 11 - | Diagnostic connector |
