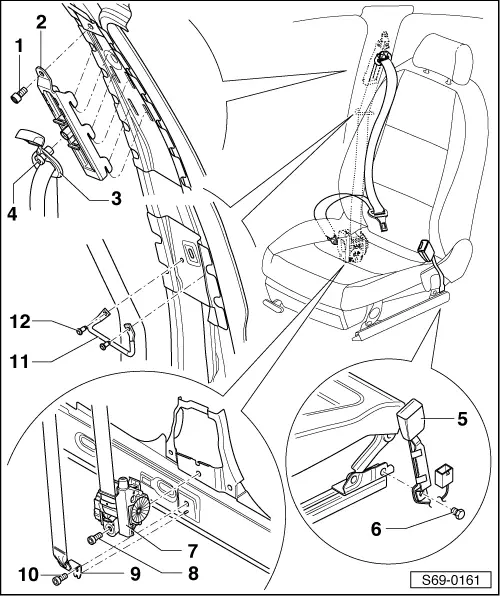

| Summary of components of front seat belts |
| 1 - | 22 Nm |
| 2 - | Belt height adjustment |
| Removing: |
| – | Remove trim panel of pillar B top → Chapter. |
| – | Remove screw (Pos. 4) and take off top deflection fitting (Pos. 3). |
| – | Remove screw (Pos. 1). |
| – | Remove belt height adjustment from the top. |
| Installing: |
| – | Installation is carried out in the reverse order. |
| 3 - | Top deflection fitting |
| 4 - | 35 Nm |
| 5 - | Belt buckle |
| 6 - | 22 Nm |
| 7 - | Inertia reel with seat belt tensioner |
| q | The retaining lug determines the position of the inertia reel. |
| q | Loosening of the screw causes the inertia reel with belt tightener to be secured, and the opposite situation causes it to become operative again. |
| Removing: |
Note| Disconnect battery earth strap → Electrical System → Rep. gr.27. |
| – | Remove top and bottom → Chapter trim panels of pillar C. |
| – | Remove top deflection fitting (Pos. 3). |
| – | Remove screw (Pos. 8). |
| – | Disconnect the plug connection on the belt tightener. |
| – | Take out inertia reel with seat belt tensioner. |
| – | Remove screw (Pos. 10). |
| Installing: |
| – | Installation is carried out in the reverse order. |
Note| Pay attention to the sequence when connecting the battery → Electrical System → Rep. gr.27. |
| 8 - | 35 Nm |
| 9 - | Deflection fitting below |
| 10 - | 35 Nm |
| 11 - | The belt guide |
| 12 - | 3 Nm |
