Running gearInspecting and adjusting the power-steering gear TRW
| Check the centre position of the gear rack of the power-steering gear, if necessary adjust |
| Special tools and workshop equipment required |
| t
| Caliper gauge (commercially available) |
| –
| Before installing the power-steering gear place the gear rack in centre position. |
Diagram not available
Note | t
| The gear rack of spare part steering gears is already in centre position. |
| t

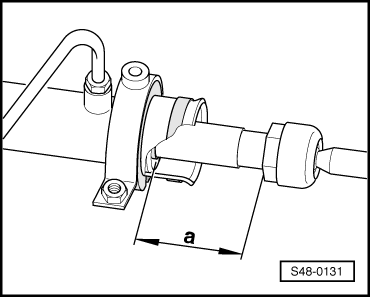

| Dimension -a- must be equal on both the right and left side if the steering gear. If the dimension on the two sides is not the same, distance -a- must be corrected. |
|
|
|
| –
| Check dimension -a-, if necessary adjust. |
|
|
|
| –

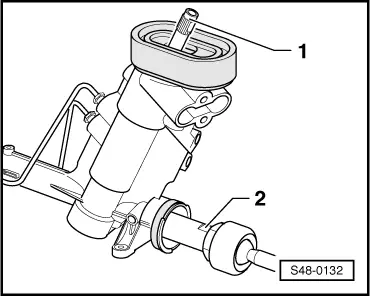

| Adjusting dimension -a- by turning the input shaft -1- of the power-steering gear. |
|
|
|
