Roomster

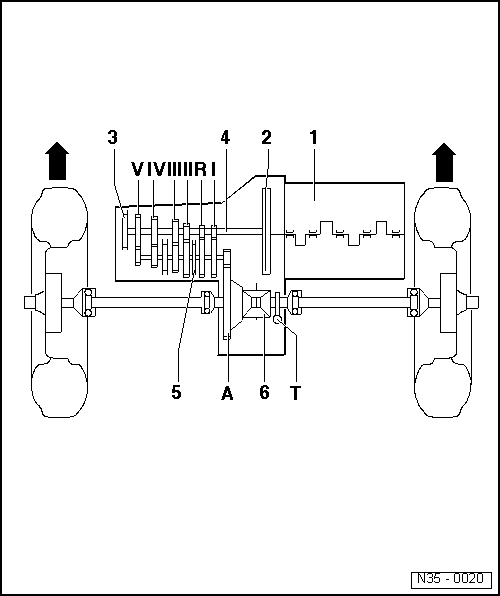

| Designation of components and transmission ratio |
Note| The -arrows- point in the direction of travel. |
| 1 - | Engine |
| 2 - | Clutch |
| 3 - | Manual gearbox |
| 4 - | Drive shaft |
| 5 - | Output shaft |
| 6 - | Differential gear |
| I - | 1st gear |
| II - | 2nd gear |
| III - | 3rd gear |
| IV - | 4th gear |
| V - | 5th gear |
| R - | Reverse gear |
| A - | Final drive |
| T - | Speedometer drive |
| q | for vehicles without ABS |
