Check gear oil level
Check gear oil level
Special tools and workshop equipment required
t  Socket wrench insert -T30023 (3357)-
Gearbox oil specification:
t  Fabia II → Chapter.
t  Roomster → Chapter.
t  Rapid → Chapter.
–  Remove the sound dampening system → Body Work; Rep. gr.50.

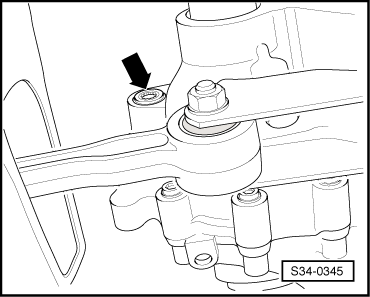

–  Unscrew plug for inspecting gear oil -arrow-.
The oil is at the correct level if the gear is filled up to the lower edge of the oil filler hole.
–  Tighten oil filler plug -arrow- to tightening torque → Fig..
If re-filling, do the following:
–  Unscrew gearbox oil filler threaded plug -arrow-.
–  Pour in gear oil up to lower edge of the filler hole.
–  Screw in plug -arrow-.
–  Start engine, engage a gear and allow gearbox to rotate for about 2 minutes.
–  Switch off engine and unscrew plug -arrow-.
–  Pour in gear oil again up to lower edge of the filler hole.
–  Tighten oil filler plug -arrow- to tightening torque → Fig..
–  Install the noise insulation → Body Work; Rep. gr.50.
  S34-0345
Different versions of oil filler plug or oil drain plug
I - Oil filler plug or oil drain plug with internal serration: 24 Nm
lI - Oil filler plug or oil drain plug with hexagon socket head: 32 Nm
  N34-10041
