Tightening torques

Gearbox to 1.2/44 kW, 1.2/51 kW, 1.2/51 kW and 1.2/55 kW engine (Fabia II, Roomster)

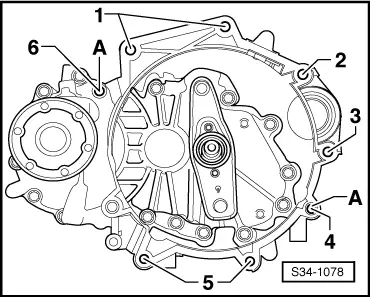

Pos.	Screw	Pieces	Nm
Pos. not assigned1)	M12 x 60	1	80
1	M12 x 60	1	80
22)	M12 x 135	2	80
3	M12 x 60	1	80
42)	M10 x 55	1	40
5	M10 x 60	1	40
6	M12 x 80	1	80

1) On certain types of engines, this position can be assigned by means of the screw, see table.

2) Screw with threaded pin M8.

A: Dowel sleeves for centering

Gearbox to 1.2/63 kW and 1.2/77 kW engine (Fabia II, Roomster)

Pos.	Screw	Pieces	Nm
1	M12 x 60	2	80
21)	M12 x 135	1	80
31)	M12 x 135	1	80
4	M12 x 60	1	80
5	M10 x 30	2	40
6	M12 x 80	1	80

1) Screw with threaded pin M8.

A: Dowel sleeves for centering

Gearbox to 1.4 ltr./63 kW engine (Fabia II, Roomster)

Pos.	Screw	Pieces	Nm
1	M12 x 60	1	80
21)	M12 x 135	2	80
3	M12 x 60	1	80
4	M10 x 35	2	40
5	M12 x 80	1	80

1) Screw with threaded pin M8.

A: Dowel sleeves for centering

Gearbox to 1.6 ltr./77 kW engine (Fabia II, Roomster)

Pos.	Screw	Pieces	Nm
1	M12 x 60	2	80
21)	M12 x 135	1	80
31)	M12 x 150	1	80
4	M12 x 60	1	80
5	M10 x 50	2	40
6	M12 x 80	1	80

1) Screw with threaded pin M8.

A: Dowel sleeves for centering

Gearbox on 1.6 ltr./77 kW engine (Rapid)

Pos.	Screw	Pieces	Nm
1	M12 x 50	2	80
21)	M12 x 125	1	80
31)	M12 x 125	1	80
4	M12 x 60	1	80
5	M10 x 30	2	40
6	M12 x 70	1	80

1) Screw with threaded pin M8 x 12.

A: Dowel sleeves for centering

Gearbox to 1.4/51 kW TDI PD engine (Fabia II, Roomster)

Pos.	Screw	Pieces	Nm
1	M12 x 70	2	80
21)	M12 x 150	2	80
31)	M10 x 70	1	40
4	M10 x 65	1	40
5	M12 x 80	1	80

1) Screw with threaded pin M8.

A: Dowel sleeves for centering

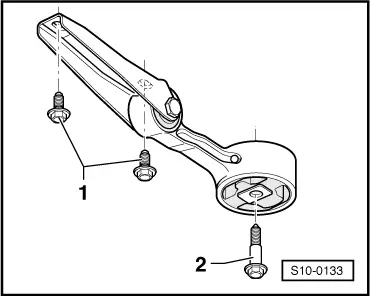

Pendulum support   Note Position the screws -1- in the elongated holes of the pendulum support in such a way that there is maximum distance between the gearbox and the assembly carrier.

Components	Tightening torque
Gearbox console to gearbox1)	40 Nm + 90°
Fixing screws of gearbox mount1)	40 Nm + 90°
Cover plate for flywheel	10 Nm
Cable support to gearbox	→ Chapter
Gearbox shift lever to gearbox	→ Chapter
Slave cylinder to gearbox	→ Chapter
Fixing screws of engine mount	→ Engine; Rep. gr.10
Pendulum support	→ Engine; Rep. gr.10
Noise insulation bracket	→ Engine; Rep. gr.15
Pre-exhaust pipe with catalytic converter and clamping sleeve	→ Engine; Rep. gr.26
Drive shaft to flange shaft	→ Chassis; Rep. gr.40
Coupling rod to anti-roll bar	→ Chassis; Rep. gr.40
Protective cap drive shaft on engine	→ Chassis; Rep. gr.40
Steering joint to track control arm	→ Chassis; Rep. gr.40
Wheel bolts	→ Chassis; Rep. gr.44

1) Always replace these screws → Electronic Catalogue of Original Parts.
