Tightening torques (Fabia II, Roomster, Rapid)

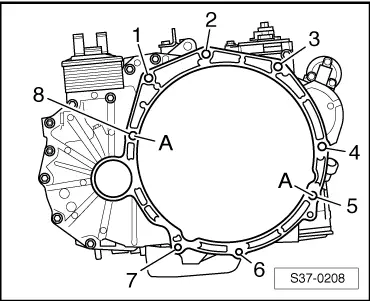

Vehicles with 1.6 ltr./77 kW engine (Fabia II, Roomster) Gearbox to engine

Pos.	Screw	Pieces	Nm
1	M12 x 55	1	80
2	M12 x 55	1	80
3	M12 x 55	1	80
4 1)2)3)	M12 x 165	1	80
5	M12 x 80	1	80
6	M10 x 35	1	40
7	M10 x 35	1	40
8	M12 x 80	1	80
A	Dowel sleeves for centering

Note The second screw (80 Nm) M12 x 551)2) to secure the starter to the gearbox is not shown in the illustration. 1) Screw with threaded pin M8. 2) Fixing screw for starter. 3) As of 48/10, the screw length was modified (M12 x 155).

Vehicles with 1.6 ltr./77 kW engine (Rapid) Gearbox to engine

Pos.	Screw	Pieces	Nm
1	M12 x 42	1	80
2	M12 x 42	1	80
3	M12 x 42	1	80
4 1)2)	M12 x 150	1	80
5	M12 x 70	1	80
6	M10 x 35	1	40
7	M10 x 35	1	40
8	M12 x 70	1	80
A	Dowel sleeves for centering

Note The second screw (80 Nm) M12 x 551)2) to secure the starter to the gearbox is not shown in the illustration. 1) Screw with threaded pin M8. 2) Fixing screw for starter. Vehicles with 1.6 ltr./77 kW engine (Fabia II, Roomster, Rapid)

Gearbox console to gearbox and gearbox mount

Component		Nm

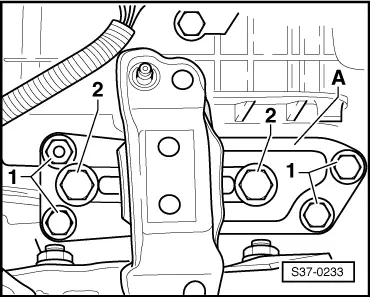

Gearbox console -A- to gearbox, screws -1-		40 + torque a further 90° 1)2)
Gearbox console -A- to gearbox mount, screws -2-		60 + torque a further 90° 1)2)

1) Replace screws → Electronic Catalogue of Original Parts. 2) 90° corresponds to a quarter turn.   Note Install engine/gearbox mounting free of stress → Engine; Rep. gr.10.

Torque converter on the driver plate

Component		Nm

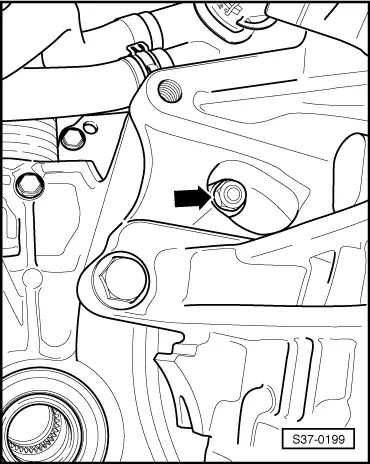

Torque converter to drive plate, 6 nuts -arrow-		57 1)

1) Replace nuts → Electronic Catalogue of Original Parts. All other bolted connections

Component		Nm
Screws/nuts	M6	10
	M8	20
	M10	45
	M12	65
