Information and repair instructions for the automatic gearbox 09G > < Setting overview

Roomster

Identification of the gearbox
Identification of the gearbox
The „automatic 6-speed gearbox 09G“ is installed in combination with 4-cylinder engines.

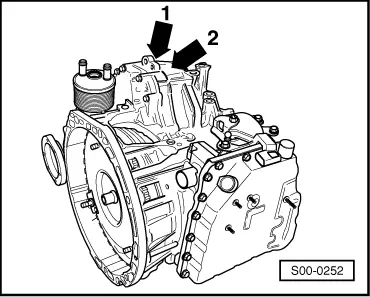

Location of identification code letters on the gearbox
Example for a gearbox:

Identification characters and manufacturing date of the gearbox -arrow 1- and -arrow 2-.
Example:
  S00-0252
FXAGearbox identification characters
02H2T00144Serial number
02 : production year 2002
H : production month from A = January to M = December
2T : identification of the gearbox from the manufacturer, 2T = 09G
00144 : serial number for the production month, this is the 144th gearbox for the month of August
09G 300 035GPart number
AISIN AWManufacturer: AISIN

  Note
The gearbox identification characters also appear on the vehicle data stickers.
