Replacing the right flange shaft seal ring
Replacing the right flange shaft seal ring
Gasket ring can be replaced with the gearbox installed.
Special tools and workshop equipment required
t  Thrust piece -T10177-
t  Extractor -T10055-
t  Adapter -T10055/2-
  Note
General repair information → Chapter.
Removing
–  Remove the sound dampening system → Body Work; Rep. gr.50.
–  Remove drive shaft to the right → Chassis; Rep. gr.40.

–  Close opening for drive shaft at gearbox with a clean cloth -A-.
–  Position drip tray, e.g. -VAS 6208- under the gearbox.

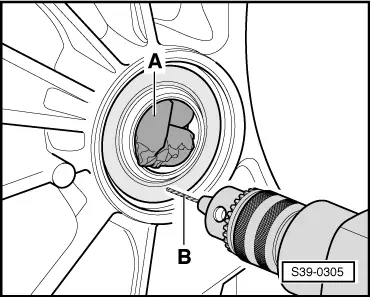

–  Drill a hole in the outer metal plate ring of the shaft seal with a commercially available twist drill -B- (Ø 2 to 4 mm).
  Note
t  Only drill through the metal plate ring, otherwise the gearbox may be damaged.
t  Grease drill -B- in such a way that the metal swarfs adhere.
  S39-0305
–  Screw a sheet metal screw with a diameter of approx. 4 mm into the drilled hole of the gasket ring -arrow-.
  Note
The sheet metal screw must not be screwed in too deep, so that the bearing behind the gasket ring is not damaged.

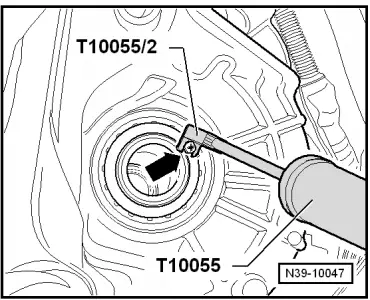

–  Remove the gasket ring with the extractor -T10055- and adapter -T10055/2-.
If the metal plate ring of the gasket ring is pulled out:
  N39-10047

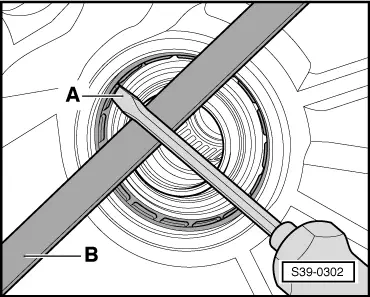

–  Lever out the remaining shaft seal with a screwdriver -A-.
–  Remove cloth -A- and thoroughly clean the gearbox.
  WARNING
No metal swarfs must enter into the gearbox and into the opening for the drive shaft, if necessary suction off these swarfs.
Install
Installation is carried out in the reverse order. Pay attention to the following:
–  Smear the outer surface and sealing lips of the new gasket ring with ATF.
l  Fitting location: The open side of the gasket ring faces towards the gearbox.
–  Position new seal ring by hand and press in as far as possible, so that the shaft seal is fixed in the gearbox housing.
  S39-0302

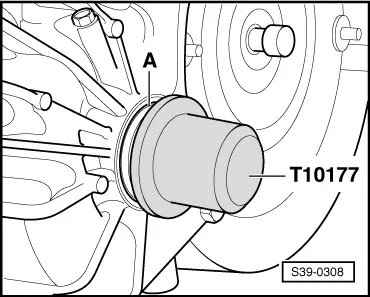

–  Position pressure plate -T10177- in the middle on the shaft seal -A-.
–  Drive the new gasket ring up to the stop in the pressure plate; do not tilt the gasket ring.
–  Install right drive shaft → Chassis; Rep. gr.40.
–  Inspecting ATF level and if necessary topping up → Chapter.
–  Install the noise insulation → Body Work; Rep. gr.50.
  S39-0308
Tightening torque
Flange shaft to gearbox → Chassis; Rep. gr.40
