Performing emergency release (Fabia II, Roomster)
Performing emergency release (Fabia II, Roomster)
Carefully unclip the selector lever cover from the centre console.
  Note
Do not remove grip of selector lever.

–  Depress the brake pedal or pull on the handbrake.

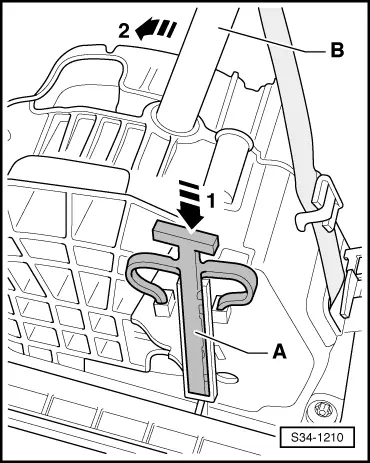

–  Press the yellow plastic wedge -A- in -direction of arrow 1-.
–  Now press the button on the selector lever grip and shift the selector lever -B- in -direction of arrow 2- out of the position „P“.
  Note
If the selector lever is then shifted again into the position „P“, it is mechanically blocked again in the position „P“.
  S34-1210
