Engine bonnet

Make

Skoda

Model

Superb

Section

Body Work › Bonnet, flaps, cab, central locking › Engine bonnet

BodyEngine bonnet

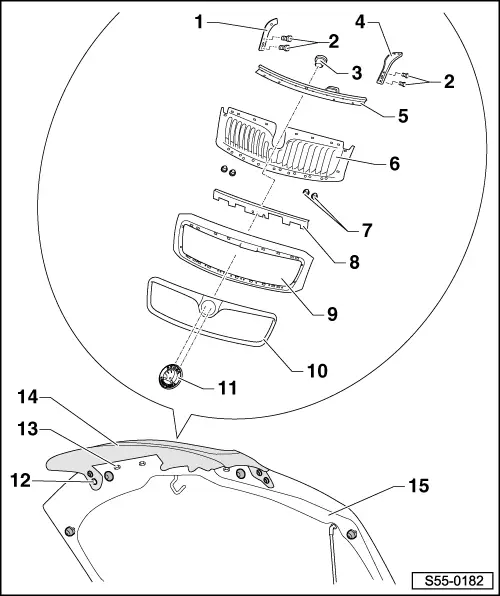

Summary of components of radiator grill

1 -	Right bracket

2 -

Screw

3 -	Blind rivets

4 -	Left bracket

5 -	Fixing part

q	riveted to grid Pos. 6

6 -

Grid

7 -

Spacer

q	clipped into fixing part Pos. 5

8 -	Reinforcement

q	welded with radiator grill frame Pos. 9

9 -	Radiator grill frame

10 -	Trim strip

11 -	“ŠKODA” signs

q	removing and installing → Chapter

12 -

6 Nm

13 -

3 Nm

14 -	Radiator grill

q

Removing:

–	Open engine bonnet.

–	Release screws Pos. 12 and Pos. 13 and remove radiator grill.

q	Disassembling and assembling radiator grill → Chapter.

q	Installing:

Installation is carried out in the reverse order. Pay attention to the following:

–	After installation the radiator grill must be flush with the engine bonnet.

15 -	Engine bonnet
