Folding box Cargoflex

Make

Skoda

Model

Superb

Section

Body Work › Interior equipment › Folding box Cargoflex

BodyFolding box Cargoflex

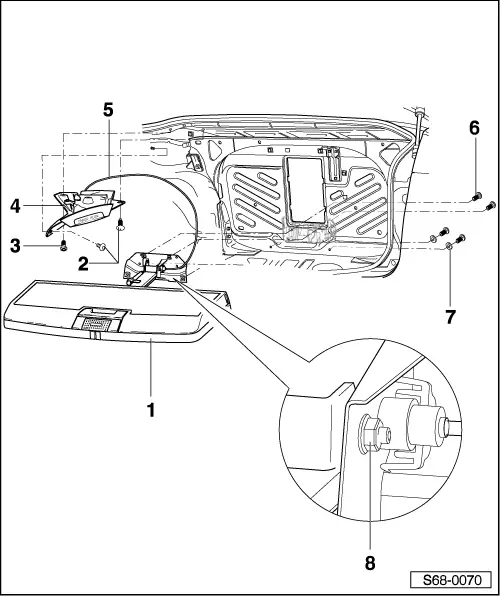

Summary of components of folding box Cargoflex

1 -	Folding box Cargoflex

q

Removing:

–	Remove the panelling on the rear wall seats at the rear.

–	Remove rear backrest.

t	Fixed rear seat backrest: → Chapter

t	Folding rear seat backrest: → Chapter

–	Remove screws Pos. 6.

–	Disconnect the control cable from the folding box.

–	Remove the folding box Cargoflex out of the vehicle.

q	Installing:

Installation is carried out in the reverse order.

2 -

Clip

3 -

3.5 Nm

4 -	The control console

5 -	Control cable

6 -

25 Nm

7 -

Washer

8 -	Adjusting screw

q	Secure the folding box using the adjusting screw in the middle of the rubber strips on the luggage compartment floor

q	only adjust after installing the Cargoflex
