Superb

Removing and installing the rear door
Removing and installing the rear door
  WARNING
Disconnect the earth strap from the battery before commencing work on the electrical system → Electrical System → Rep. Gr.27.
Removing

–  Separate the bellows -3- from pillar A and disconnect the electrical plug connections.
–  Remove the nut -1- from the door hinge -2-.
–  Remove screws -4-.
–  Unhook the door upwards.
Install
Installation is carried out in the reverse order. Pay attention to the following:
  S58-0064

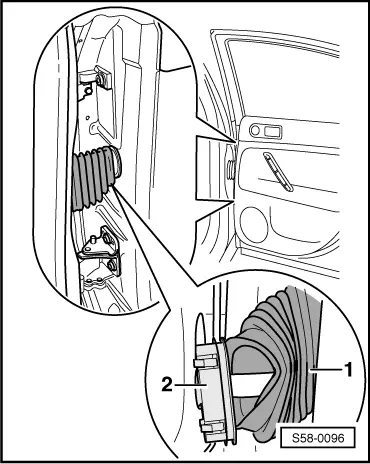

–  Remove bellow bracket -2- from pillar A.
–  Insert bellow bracket -2- in the bellows -1- and install bracket with bellows in the pillar A.
–  In the event of damage replace bellow bracket -2- with a new original part.
  Note
Additional operations should be carried out after the battery earth strap has been connected → Electrical System → Rep. Gr.27.
  S58-0096
