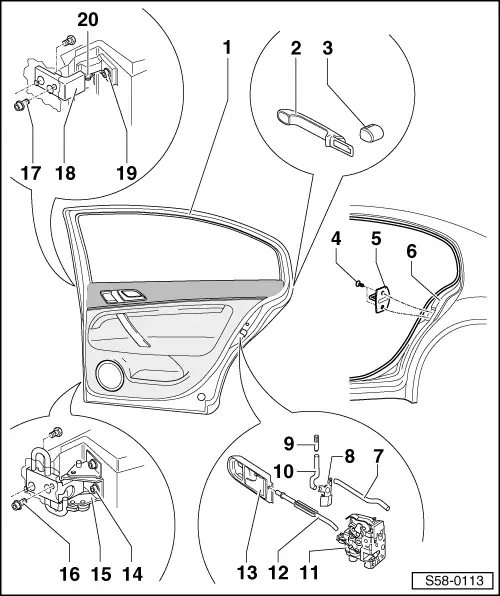

Summary of components of rear door

Summary of components of rear door
1 - Door
q   removing and installing → Chapter
2 - Door handle
q   removing and installing → Chapter
3 - Housing
q   removing and installing → Chapter
4 - 22 Nm
5 - Latch striker
6 - Side part of pillar C
7 - Securing rod
8 - Elbow lever
9 - Securing knob
q   removing and installing → Chapter
10 - Link rod
11 - Door lock
q   removing and installing → Chapter
12 - Bowden cable
13 - Inside door control
14 - 20 Nm + torque a further 1/4 turn (90°)
q   replace
15 - Bottom door hinge
16 - 20 Nm + torque a further 1/4 turn (90°)
q   replace
17 - 20 Nm + torque a further 1/4 turn (90°)
q   replace
18 - Top door hinge
19 - 20 Nm + torque a further 1/4 turn (90°)
q   replace
20 - 30 Nm
