Removing and fitting the heating and air conditioning system control
Removing and fitting the heating and air conditioning system control

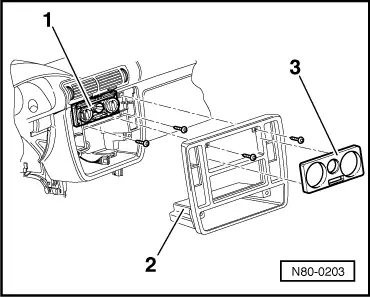

–  Unplug heater guard -3-.
–  Remove centre trim -2-.
–  Pull out control -1- from dash panel with the control cables fitted.
–  Release control cables on control.
–  Disconnect plug connections.
  N80-0203
