Removing and installing throttle
Removing and installing throttle
Removing
–  Drain the refrigerant circuit.
  Note
All opened components of the refrigerant circuit must be protected from the penetration of ambient humidity with suitable plugs.

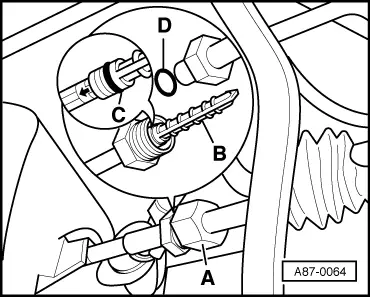

–  Release screwed connection -A-.
t  Tightening torque: 15 Nm
–  Separate refrigerant lines.
–  Replace O-rings.
t  O-ring -C- = 7.5 mm x 1.5 mm
t  O-ring -D- = 10.8 mm x 1.8 mm
–  Pull out throttle -B- from the refrigerant line with pointed pliers.
–  Close open connections.
Install
–  Insert the throttle on the correct side in the refrigerant line.
Arrow on the throttle points towards the direction of flow.
  A87-0064
–  Fit refrigerant lines stress free.
  A87-0064
