Summary of components: shock absorber, helical spring (vehicles with four-wheel drive) > < Summary of components: anti-roll bar (vehicles with four-wheel-drive)

Yeti

Release the screw connection of the shock absorber bushing and tighten up again

Release the screw connection of the shock absorber bushing and tighten up again

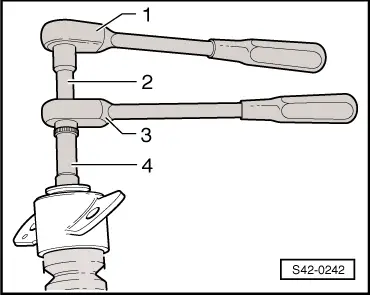

1 - Ratchet (commercially available)
2 - Pull-off shackle -T10001/9-
3 - Ratchet -T10001/11-
4 - Pull-off shackle -T10001/1-
  S42-0242
Tightening torque:
Nut for shock absorber bushing to shock absorber25 Nm
