Removing and installing protective side strips
Removing and installing protective side strips
Special tools and workshop equipment required
t  Hot-air blower e.g. -V.A.G 1416-.
t  Cleaning solution e.g. -D 009 401 04-.
t  Glue remover -D 002 000 10-.
Removing:
–  Protectve strip with hot air out of the hot-air blower to approx. 100 °C.
–  Separate protective strip from the door.
–  Remove glue residues with -D 002 000 10-.
Installing:

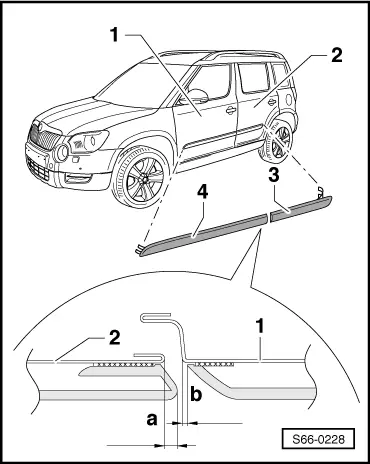

–  Clean front door -3- and rear door -2- with cleaning solution -D 009 401 04-.
–  Remove protective foils from adhesive tapes.
–  Stick protective strips -1- and -4- on front door -3- and rear door -2-, pay attention to the following:
a = 3.41 - 0.5 mm
b = 1,41 + 0.5 mm
  Note
The temperature of the outer panels and the protective strips must be of approx. 20 - 40°C.
Proceed in the same manner on the other vehicle side.
  S66-0228
