Glued Windows for Ideal Yeti Body Glazing

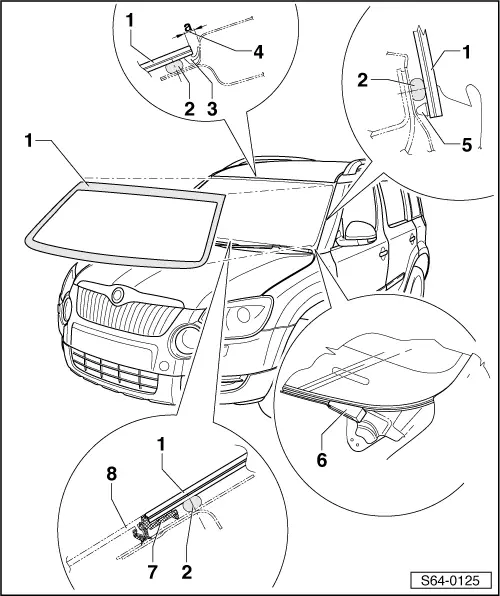

| Summary of components of windscreen |
| 1 - | Windscreen |
| q | removing and installing → Chapter |
| 2 - | PUR - adhesive cement |
| 3 - | Sealing section |
| q | Component part of the windscreen |
| 4 - | Dimension -a- = 4,2 ± 0.5 mm |
| 5 - | Stop |
| q | for installation of window |
| 6 - | Window pane adjuster |
| q | for adjusting the position of the window pane |
| 7 - | Sealing section |
| q | is part of the windscreen |
| 8 - | Plenum chamber cover |
| q | removing and installing → Chapter |
