Read off the gearbox identification characters (Yeti)
Read off the gearbox identification characters (Yeti)
Short description

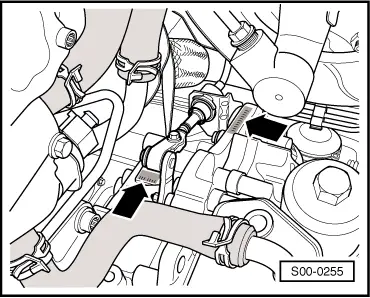

On certain gearboxes the additional identification characters are located at the top of the gearbox close to the selector lever control cable -arrows-.
  S00-0255

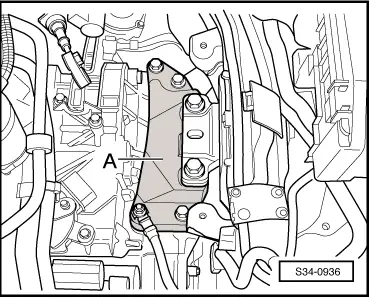

In order to read off the code letters below the console directly from the gearbox, the engine must be supported. The console -A- of the left unit mounting must be removed.
When doing this, it is important to lower the engine/gearbox sufficiently until the console -A- can be pushed to the rear. If they are lowered further, the pendulum support will be damaged.
–  Remove the complete air filter housing → Engine; Rep. gr.23.
  Note
If the battery earth strap is disconnected and connected, carry out additional operations → Electrical System; Rep. gr.27.
–  Remove battery and battery tray → Electrical System; Rep. gr.27.
–  Support engine with gearbox using the supporting device -MP9-200 (10-222 A)- and remove and install the gearbox console → Chapter.
After the installation, the selector lever control cable must be set → Chapter.
  S34-0936
