Identification of the gearbox
Identification of the gearbox
The „7-speed double clutch gearbox DSG - 0AM“ is installed in combination with 4-cylinder engines.
Assignment Octavia II → Chapter.
Assignment Superb II → Chapter.
Assignment Yeti → Chapter.
Assignment Fabia II → Chapter.
Assignment Roomster → Chapter.

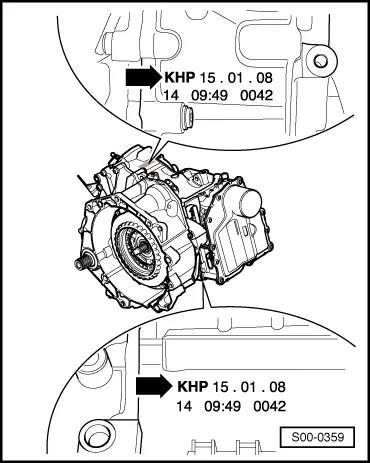

Location of identification code letters on the gearbox
Example for a gearbox:

The gearbox code letter -arrow- is located at the top and bottom of the gearbox.
t  KHP = gearbox identification character
t  15.01.08 = Production date 15th January 2008
t  14 = Factory code
t  09:49 = time
t  0042 = serial number
The gearbox identification characters also appear on the vehicle data stickers.
  Note
If these vehicle data stickers are not present and another gearbox is installed than the one intended or you have no other possibility to identify the installed gearbox in case of doubt, then read off the identification characters directly from the gearbox.
