Yeti

Removing
Removing
–  Remove gearshift mechanism (Octavia II) → Chapter.
–  Remove gearshift mechanism (Superb II) → Chapter.
–  Remove gearshift mechanism (Yeti) → Chapter.

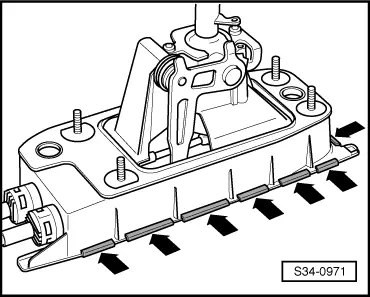

–  Bend up tabs -arrows- of cover for the shift mechanism using a screwdriver and remove cover.
–  Remove gasket ring.
  S34-0971

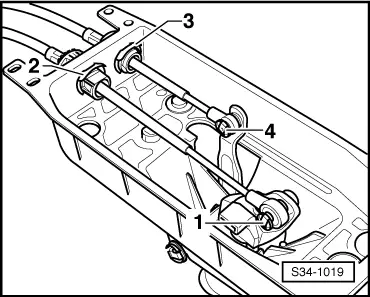

–  Remove lock washers -2 and 3- (lock washers -1 and 4- are no longer available), selector cable and shift cable must be levered off from the shift lever or selector lever e.g. with a screwdriver.
–  Remove shift cable and selector cable from shift housing.
  S34-1019

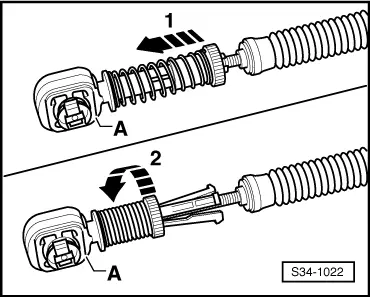

Unlock catches -A- for shift cable and selector cable as follows:
–  Slide sliding sleeve forwards up to the stop -arrow 1-.
–  Turn sliding sleeve to the right up to the stop -arrow 2- until it locks audibly.
–  Remove the catches from the cables.
  S34-1022

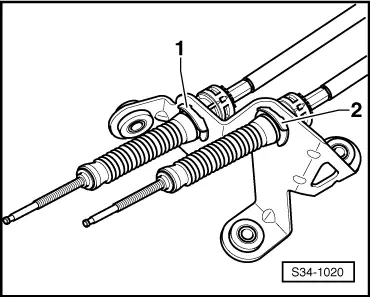

–  Remove circlips -1- and -2-.
–  Remove the cable support from the cables.
  S34-1020
