Yeti

Oil pan and oil pump - Overview of the components

Oil pan and oil pump - Overview of the components
1 - Oil level and oil temperature sender -G266 -
2 - Gasket
q   replace
3 - 8 Nm + torque a further 45° (1/8 turn)
q   replace
q   order of tightening → Chapter
4 - The lower part of the oil pan
q   removing and installing → Chapter
5 - 9 Nm
6 - Baffle
q   replace
7 - 9 Nm
8 - Oil pump
q   removing and installing → Chapter
9 - Fitting sleeve
10 - Chain tensioner
11 - 9 Nm
12 - 9 Nm
13 - Valve for oil pressure control -N428 -
14 - O-ring
q   replace
15 - Drive chain for oil pump
q   before removing mark running direction
16 - Gasket
q   replace
17 - Oil separator
18 - 9 Nm
q   order of tightening → Fig.
19 - Upper part of the oil pan
q   removing and installing → Chapter
20 - 9 Nm
21 - 15 Nm + torque a further 90° (1/4 turn)
q   replace
q   order of tightening → Chapter
22 - Suction line
q   Clean strainer if dirty
23 - O-ring
q   replace
24 - Sealing ring
q   replace
25 - O-ring
q   replace
26 - Return-flow check tube
27 - Oil drain plug, 30 Nm
q   replace
28 - 9 Nm

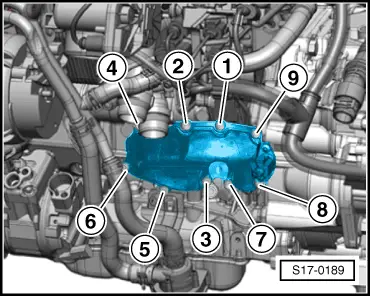

Oil scraper - tightening sequence
–  Tighten the bolts in the sequence -1 through 9- to 9 Nm.
  S17-0189
