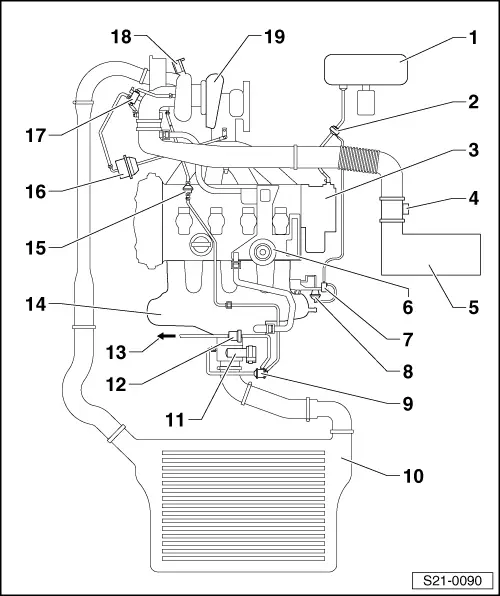

| Overview plan for the exhaust turbocharging |
| 1 - | Brake servo unit |
| 2 - | Non-return valve with connection fitting |
| 3 - | Vacuum pump |
| 4 - | Air mass meter -G70- |
| 5 - | Air filter |
| 6 - | Crankcase ventilation |
| q | with pressure control valve |
| 7 - | Valve for variable intake manifold changeover - N156- |
| 8 - | Setting element for the intake manifold flap valve |
| 9 - | Double non-return valve |
| q | check → Chapter |
| q | a component with activated charcoal filter solenoid valve 1 -N80- |
| 10 - | Charge air cooler |
| 11 - | Throttle valve control unit -J338- |
| 12 - | Solenoid valve 1 for activated charcoal filter -N80- |
| q | a component with double non-return valve |
| 13 - | to the activated charcoal filter system |
| 14 - | Intake manifold |
| 15 - | Non-return valve |
| 16 - | Charge pressure control pressure unit |
| 17 - | Solenoid valve for charge pressure control -N75 - |
| 18 - | Turbocharger divert air valve -N249- |
| 19 - | Exhaust gas turbocharger |
