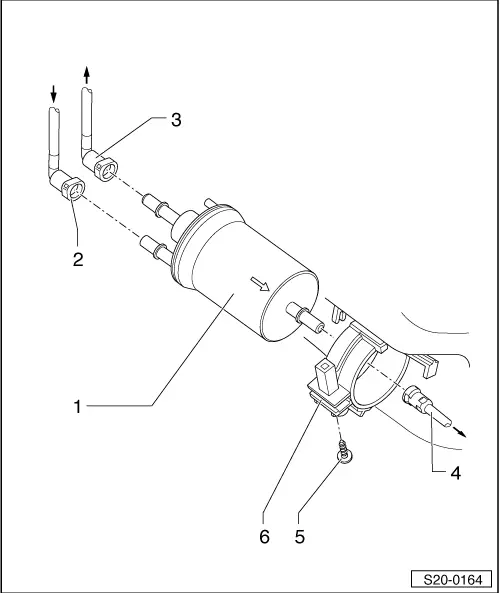

| Fuel filter - Summary of components |
| 1 - | Fuel filter |
| q | with installed pressure limiting valve for fuel return-flow line |
| Opening pressure: 0.60…0.68 MPa (6.0…6.8 bar) |
| q | do not interchange connections |

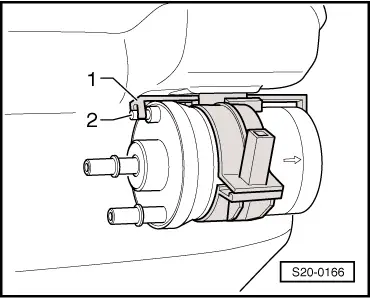

| q | Fitting position → Fig. |
| 2 - | Fuel feed line |
| q | black |
| q | from fuel tank |
| q | press in the securing ring in order to unlock |
| 3 - | Fuel return-flow line |
| q | blue |
| q | to fuel tank |
| q | press in the securing ring in order to unlock |
| 4 - | Fuel feed line |
| q | black |
| q | to the engine |
| q | press in the securing ring in order to unlock |
| 5 - | 3 Nm |
| 6 - | Support |
| q | for fuel filter |
| q | attached to the fuel tank |
|
|
