20/81; 103; 125 kW TDI CR Engine Valve Gear
Power unit
2.0/81; 103; 125 kW TDI CR Engine (2nd generation)
Engine cylinder head, valve gear
Valve gear

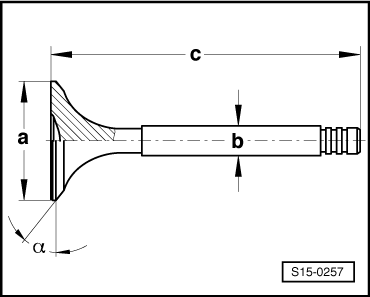

Valve dimensions
Valve dimensions
Dimension
Inlet valve
Exhaust valve
Ø a
mm
26,6
26,0
Ø b
mm
5,975
5,965
c
mm
99,3
99,1
α
∠°
45
45
Note
Valves must not be reworked. Only grinding in is permissible.
