Drive Belt: Testing and Inspection

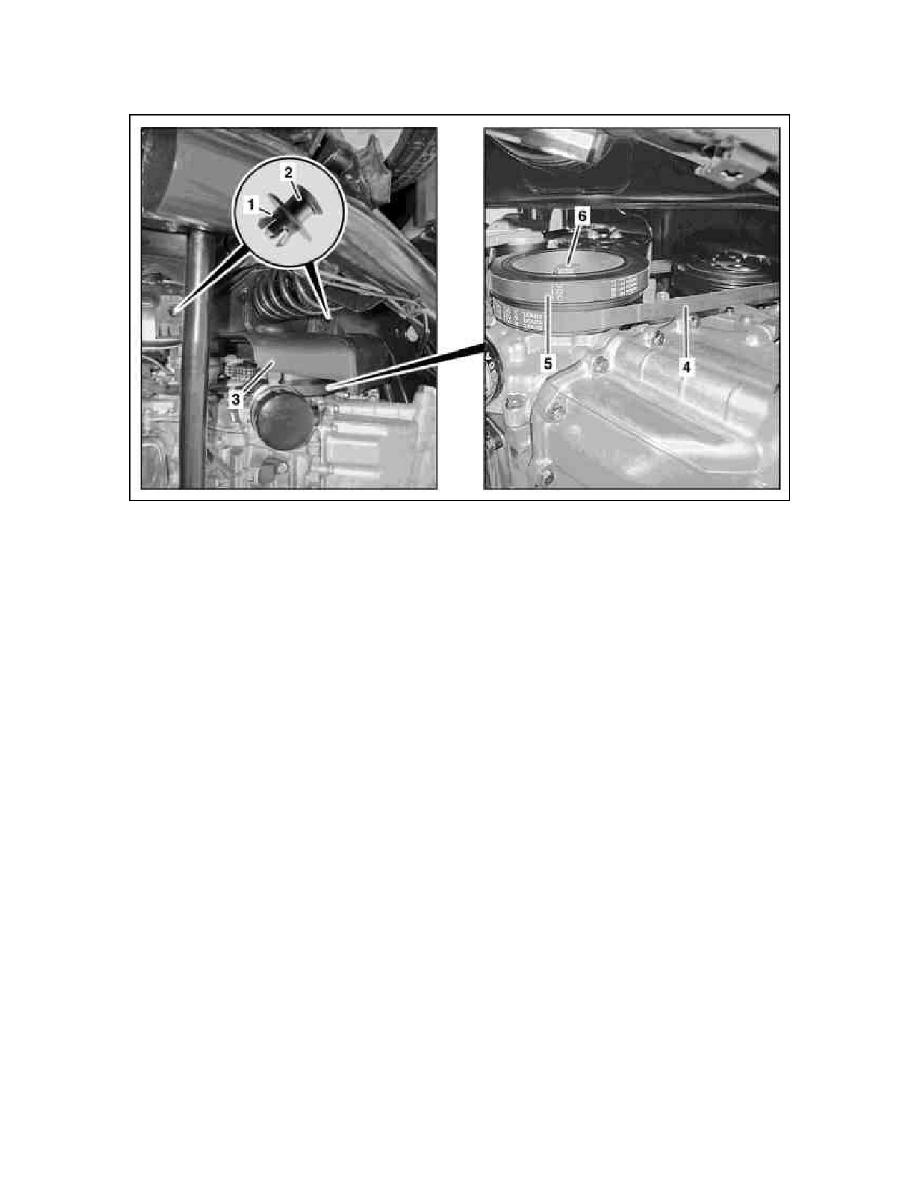

AP13.22-P-1351MCU Check Poly-V Belt For Wear And Damage

1

Expansion clip

2

Pin

3

Cover

4

Poly-V belt of refrigerant compressor (with code (I01) Air conditioning Plus)

5

Poly-V-belt

6

Center bolt

Damage profiles
