Vehicle Lifting: Service and Repair

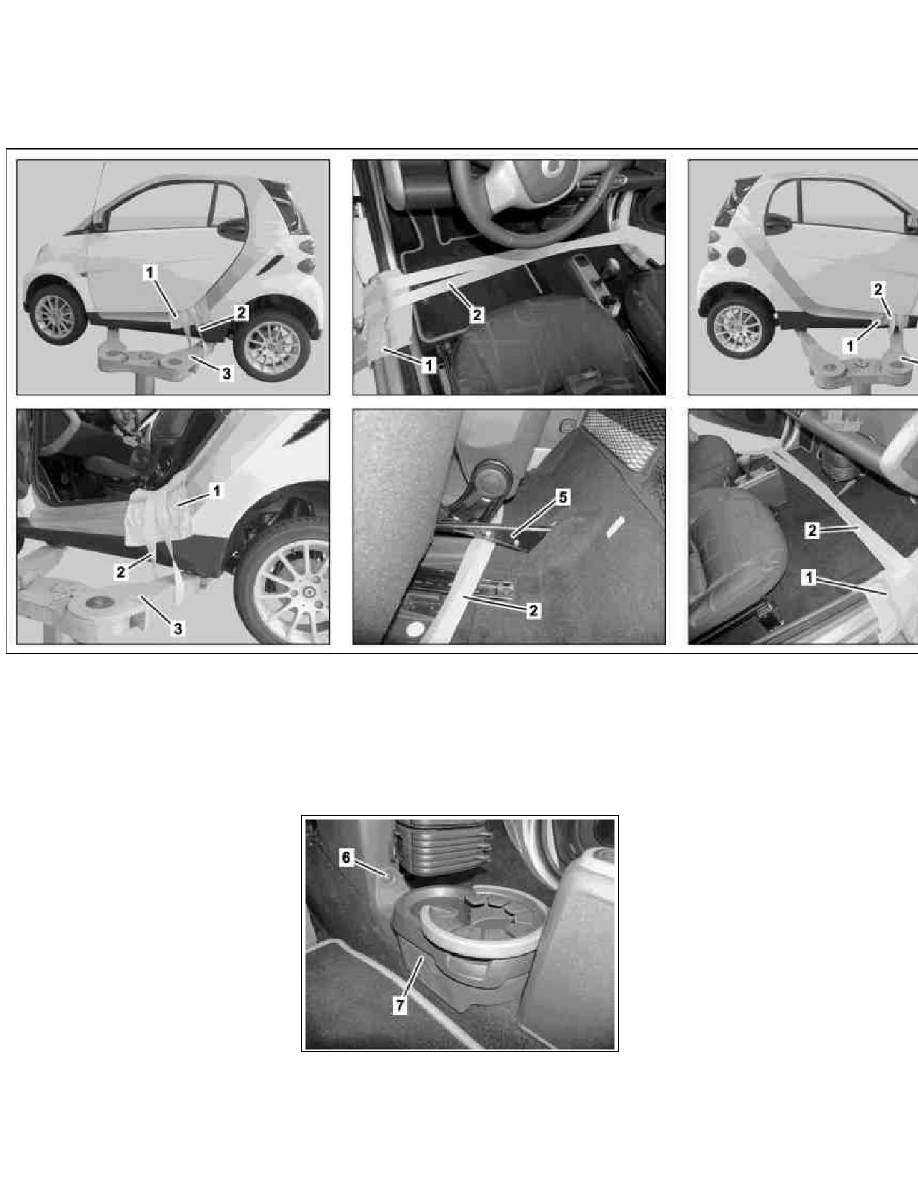

AR00.60-P-0100MCC Secure Vehicle On Vehicle Lift

Illustrated on model 451

1

Rag

2

Tensioning strap

3

Lifting platform support arm

5

Hand brake lever

Model 450, 451
shown on model 451 with code (X22) RHD beverage holder

6

Screw/bolt
(with model 450 with code (I10) Beverage holder
or with model 451 with code (X21) LHD beverage holder
or with model 451 with code (X22) RHD beverage holder)
